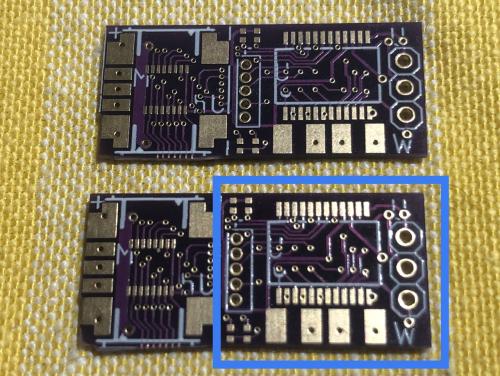

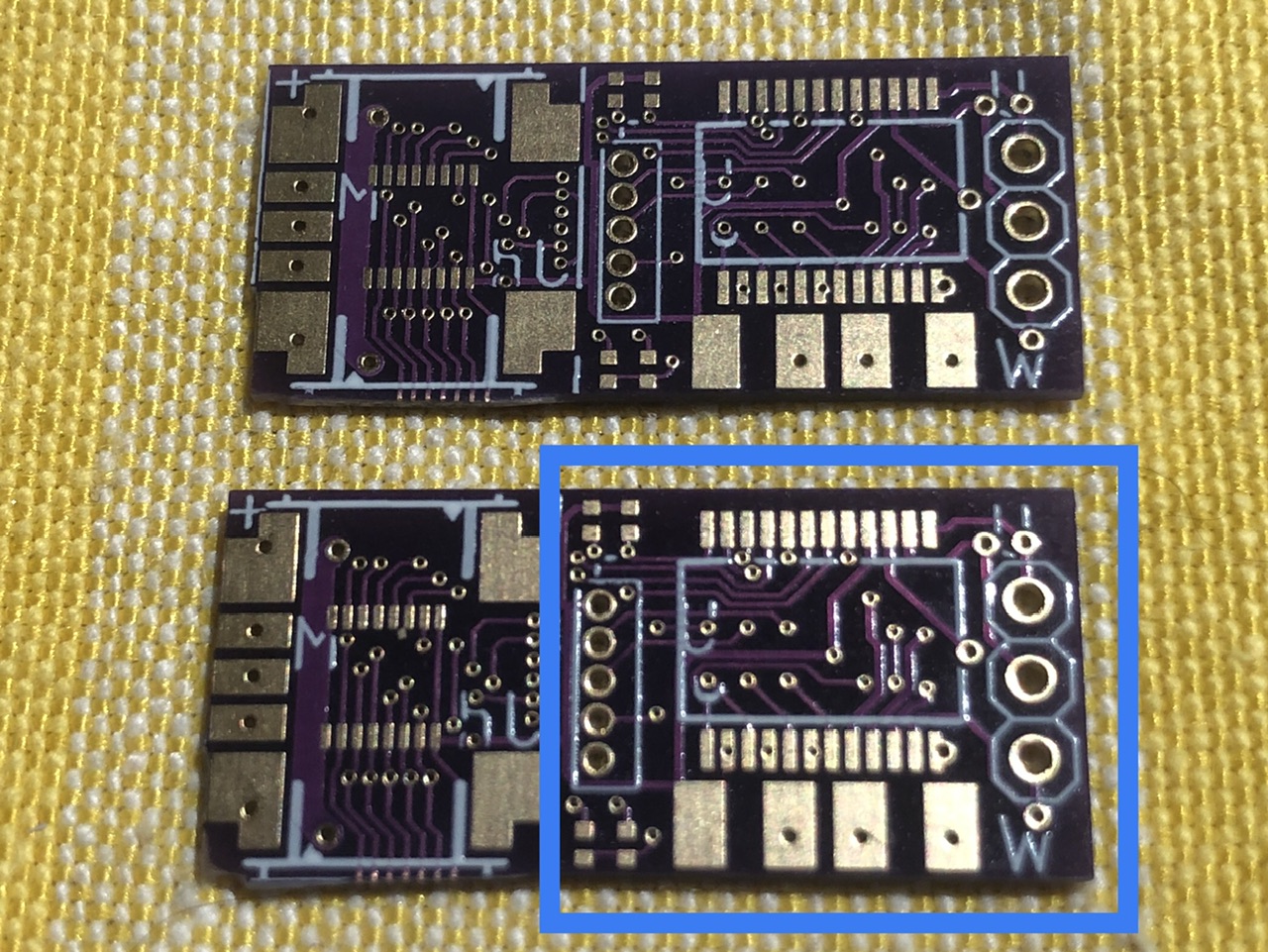

First photo shows the SENSORED brushless driver module. It’s a development board at this stage. The blue box shows the core of the driver board with the additional circuitry to the left providing a diagnostic interface capability. These boards check out correctly and shortly will be populated with components and fitted into digital slot test cars.

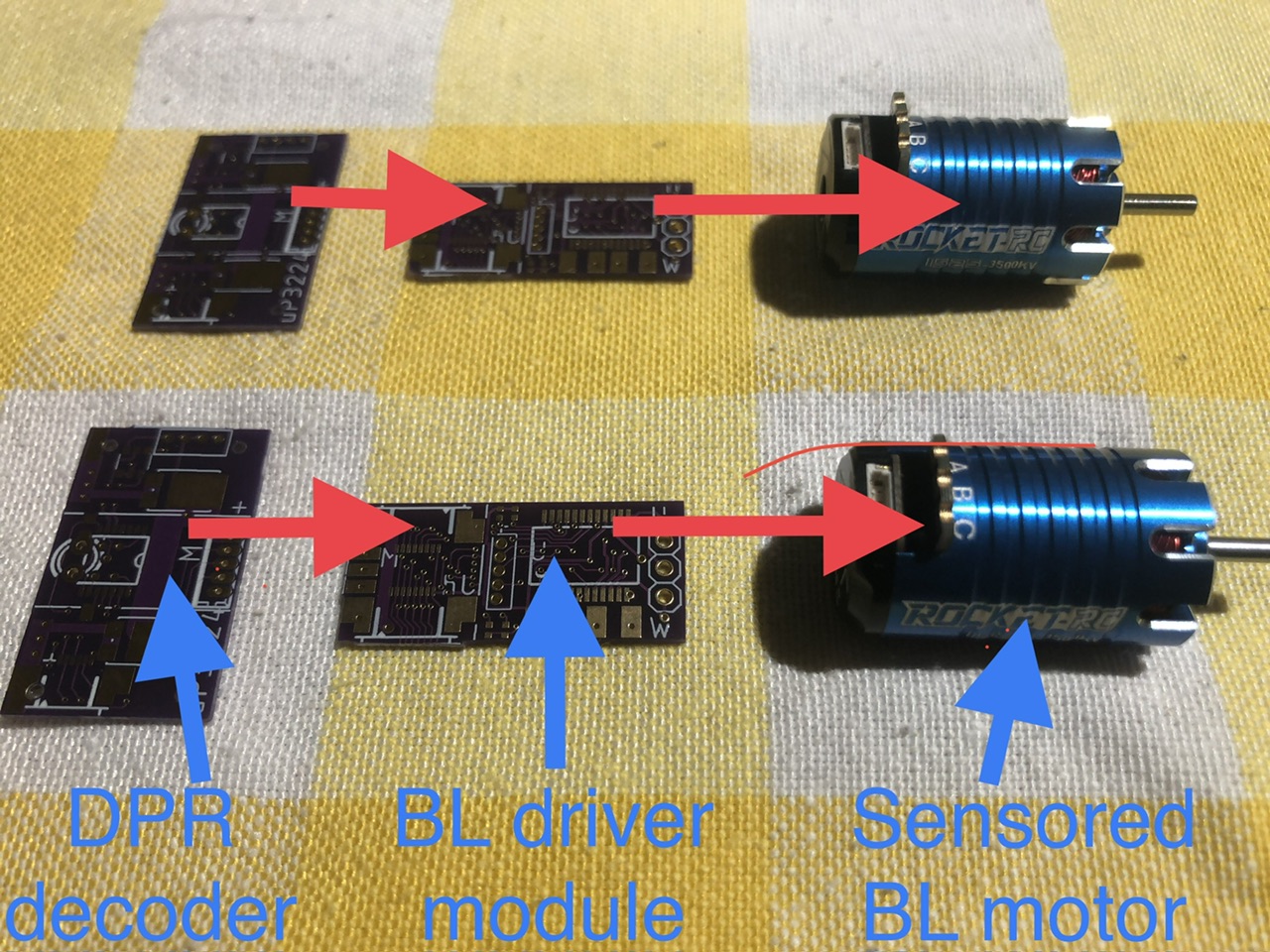

The second photo shows the drive components which are required for a GT3 install… a DPR-sized decoder, the driver module and the brushless motor - in this case a 3500Kv variant. The red arrows show the signal path from decoder to motor.

Next, some assembly required ;)
